ADO Film Pvc Decorative Films Product Description
Interior / 160 micron
Properties | Test Methods | Value |
---|---|---|
Thickness | (DIN EN ISO 2286-3) | 160 μm ± 10 μm |
Color Tolerance | (DIN 53236 (45/0), 1983-01) | ΔE≤ 0,6 ΔL≤ +/-0,35 Δa≤+/- 0,30 Δb≤ +/-0,35 |
Density | - | ≥ 1,3 g/cm³ |
Tensile Strength | ISO 527-3 | Longitudinal: ≥ 15 N Transversal: ≥ 25 N |
Elongation at Break | ISO 527-3 | Longitudinal: ≥ 3 % Transversal: ≥ 3 % |
Dimensional Stability | DIN 53377 | Longitudinal: Max. – 6 % Transversal: Max. – 2,4 % |
Light Fastness | DIN EN ISO 4892-2 / 105 B 02 TS EN 15187 |
≥ 6 / Blue Scale |
Dyne pen test | ASTM D 2578 | ≥ 30 mN/m |
* This techical information sheet represents our latest state of knowledge and shall inform without obligation
* Store in a dry clean environment at room temperature with moderate humidity.The material can be suspended in unopened packaging. Store away from sources of heat and sunlight.
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* When the above conditions are met, it is recommended that primer applied products should be used within 24 months.
Interior / 180 micron
Properties | Methods | Value |
---|---|---|
Thickness | (DIN EN ISO 2286-3) | 180 μm ± 10 μm |
Color Tolerance | (DIN 53236 (45/0), 1983-01) | ΔE≤ 0,6 ΔL≤ +/-0,35 Δa≤+/- 0,30 Δb≤ +/-0,35 |
Density | - | ≥ 1,3 g/cm³ |
Tensile Strength | ISO 527-3 | Longitudinal: ≥ 25 N Transversal: ≥ 25 N |
Elongation at Break | ISO 527-3 | Longitudinal: ≥ 3 % Transversal: ≥ 3 % |
Dimensional Stability | DIN 53377 | Longitudinal: Max. – 6 % Transversal: Max. – 2,4 % |
Light Fastness | DIN EN ISO 4892-2 / 105 B 02 TS EN 15187 |
≥ 6 / Blue Scale |
Dyne pen test | ASTM D 2578 | ≥ 30 mN/m |
* This techical information sheet represents our latest state of knowledge and shall inform without obligation
* Store in a dry clean environment at room temperature with moderate humidity.The material can be suspended in unopened packaging. Store away from sources of heat and sunlight.
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* When the above conditions are met, it is recommended that primer applied products should be used within 24 months.
Interior / 200 micron
Properties | Methods | Value |
---|---|---|
Thickness | (DIN EN ISO 2286-3) | 200 μm ± 10 μm |
Color Tolerance | X-Rite Ci6x-Ci7 / d65/10º / CIELAB | ΔE*: ≤ 0,6 ΔL*: ±0,35 Δa*: ±0,3 Δb*: ±0,35 |
Density | - | ≥ 1,35 g/cm³ |
Tensile Strength | ISO 527-3 | Longitudinal: ≥ 45 N Transversal: ≥ 35 N |
Elongation at Break | ISO 527-3 | Longitudinal: ≥ 4 % Transversal: ≥ 3 % |
Dimensional Stability | 80 º C / 10 min | Longitudinal: Max. – 4,8 % Transversal: Max. – 2 % |
Light Fastness | DIN EN ISO 4892-2 / 105 B 02 TS EN 15187 |
≥ 6 / Blue Scale) |
Dyne pen test | ASTM D 2578 | ≥ 38 mN/m |
* This techical information sheet represents our latest state of knowledge and shall inform without obligation
* Store in a dry clean environment at room temperature with moderate humidity.The material can be suspended in unopened packaging. Store away from sources of heat and sunlight.
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* When the above conditions are met, it is recommended that primer applied products should be used within 24 months.
Interior / 350 micron
Properties | Methods | Value |
---|---|---|
Thickness | (DIN EN ISO 2286-3) | 350 μm ± 10 μm |
Color Tolerance | X-Rite Ci6x-Ci7 / d65/10º / CIELAB | ΔE*: ≤ 0,6 ΔL*: ±0,35 Δa*: ±0,3 Δb*: ±0,35 |
Density | - | ≥ 1,35 g/cm³ |
Gloss Level | Rhopoint 60 º Gloss Meter | ≤ 10 GU ± 3 |
Tensile Strength | ISO 527-3 | Longitudinal: ≥ 80 N Transversal: ≥ 60 N |
Elongation at Break | ISO 527-3 | Longitudinal: ≥ 3 % Transversal: ≥ 3 % |
Dimensional Stability | 80 º C / 10 min | Longitudinal: Max. – 7 % |
Light Fastness | DIN EN ISO 4892-2 / 105 B 02 TS EN 15187 |
≥ 6 / Blue Scale |
Dyne pen test | ASTM D 2578 | ≥ 38 mN/m |
* This techical information sheet represents our latest state of knowledge and shall inform without obligation
* Store in a dry clean environment at room temperature with moderate humidity.The material can be suspended in unopened packaging. Store away from sources of heat and sunlight.
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* When the above conditions are met, it is recommended that primer applied products should be used within 24 months.
Interior / High Gloss
Properties | Methods | Value |
---|---|---|
Thickness | DIN EN ISO 2286-3 | 300 μm ± 10 μm |
Color Tolerance | X-Rite Ci6x-Ci7 / d65/10º / CIELAB | ΔE*: ≤ 0,8 ΔL*: ±0,4 Δa*: ±0,35 Δb*: ±0,4 |
Density | - | ≥ 1,5 g/cm³ |
Tensile Strength | ISO 527-3 | Longitudinal: ≥ 45 N Transversal: ≥ 40 N |
Elongation at Break | ISO 527-3 | Longitudinal: ≥ 20 % Transversal: ≥ 25 % |
Scratch Resistance | TS RN 15186 / DIN EN ISO 68861-4 | ≤ 0,3 N |
Gloss Level | Rhopoint 20 º Gloss Meter | ≥ 80 GU ≥ 80 DOI |
Light Fastness | DIN EN ISO 4892-2/105 B02 TS EN 15187 |
≤ 0,6 ( Xenon: 200 hr) ΔE* |
Scratch Resistance (Pencil Hardness) | TS EN ISO 15184 | ↑ HB |
Adhesion Test (Cross Cut) | ASTM D 3359-17 | 5 B Value “0” (No separate) |
Dyne Pen Test | ASTM D 2578 | 36 mN/m |
* This techical information sheet represents our latest state of knowledge and shall inform without obligation
* Store in a dry clean environment at room temperature with moderate humidity.The material can be suspended in unopened packaging. Store away from sources of heat and sunlight.
* Material should be acclimatised 72 hours prior to use at room temperature ( about 20 ° C)
* When the above conditions are met, it is recommended that primer applied products should be used within 24 months.
ADO Film pallet size & dimensions
Product Code | Roll Dimension (mm) | Thickness (micron) | Pallet Drawing | Roll Width (mm) | Pallette Dimension (cm) | Rolls in pallete | Total Meter (mt) | Pallete Total Weight (kg) |
---|---|---|---|---|---|---|---|---|

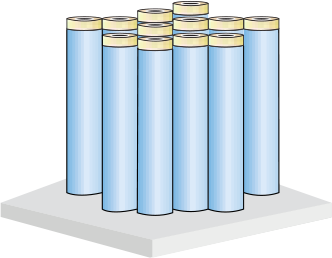

SN-MT | 250 | 200 | 1430 | 100X110 | 12 | 3000 | 1008,2 | |

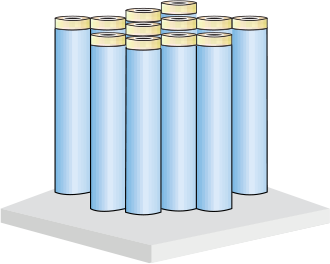

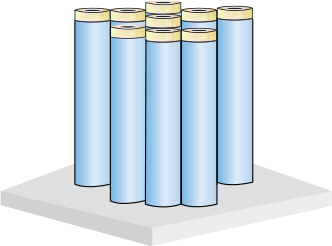

ST | 250 | 200 | 1430 | 100X110 | 9 | 2250 | 682,685 | |
SA | 250 | 200 | 1430 | 100X110 | 12 | 3000 | 903,62 | |

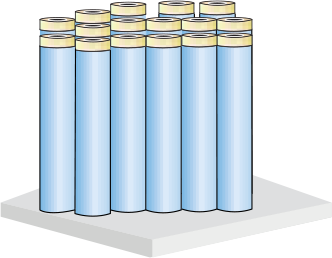

SN-MT-BS | 100 | 350 | 1430 | 100X110 | 16 | 1600 | 1053,27 | |

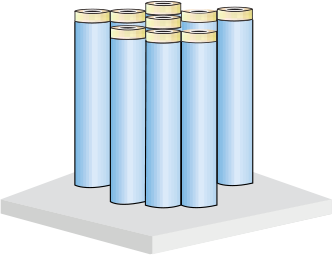

AS | 500 | 160 | 12400 | 100X110 | 9 | 4500 | 1085,28 | |

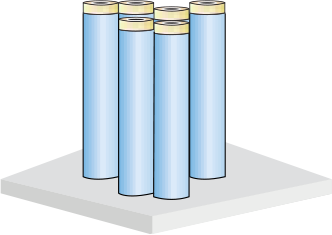

ST(DIŞ MEKAN) | 500 | 200 | 680 | 80X110 | 6 | 3000 | 454,26 |
